A is for Anaerobic Digestion, Ammonia, Agri vs Waste

Welcome to the first instalment of the TIFT Services A-Z of Anaerobic Digestion. This series is designed to provide a comprehensive guide to the technical, operational, and strategic elements of the biogas industry. We begin with the letter 'A', focusing on three critical pillars: the fundamental principles of Anaerobic Digestion (AD), the management of Ammonia inhibition, and the strategic distinction between Agricultural and Waste-based feedstocks.

Whether you are an operator seeking to improve stability or a developer evaluating new project opportunities, understanding these core concepts is essential for long-term success.

The Fundamentals of Anaerobic Digestion (AD Basics)

At its most basic level, Anaerobic Digestion is a natural microbial process that breaks down organic matter in the absence of oxygen. This biological conversion occurs within a sealed vessel, known as a digester, and results in two primary outputs: biogas and digestate. To optimise site performance, we must understand the four distinct stages of the AD process.

The Four Biological Stages

The conversion of complex organic matter into energy is not a single step. It is a sequence of biochemical reactions performed by different groups of microorganisms, each with different sensitivities, growth rates, and residence time requirements. Understanding where each stage occurs and how quickly it proceeds is essential when diagnosing instability.

1. Hydrolysis: Complex organic polymers, such as carbohydrates, proteins, and fats, are broken down into simpler soluble monomers like sugars, amino acids, and long-chain fatty acids. This stage is often the rate-limiting step for fibrous or lignocellulosic feedstocks, and it can be slowed by poor particle size reduction, inadequate mixing, or low temperature. In practical terms, hydrolysis is the front-end conversion step that determines how much of the incoming volatile solids become biologically available. For easily degradable food wastes, hydrolysis can occur within hours to a few days. For cattle slurry, straw-rich manures, or crop residues, the effective hydrolytic phase can extend across much of the digester residence time.
2. Acidogenesis: The products of hydrolysis are further converted by fermentative bacteria into volatile fatty acids (VFAs), alcohols, carbon dioxide, hydrogen, and ammonia. This stage is usually fast and robust, which is why acid formation can outpace methane formation during overload events. If feed input rises too quickly, acidogenic bacteria continue to perform while methanogens lag behind, causing VFA accumulation. In operational terms, a plant can therefore appear to digest material actively while biological balance is already deteriorating.
3. Acetogenesis: In this stage, the VFAs and alcohols are converted into acetic acid, along with additional hydrogen and carbon dioxide. This stage depends strongly on low hydrogen partial pressure, so it is closely linked to healthy hydrogen-consuming methanogens. If methanogenesis is impaired, acetogenesis also slows, and intermediate acids such as propionic and butyric acid may begin to accumulate. A rising propionate concentration is often one of the clearer early warnings that the syntrophic relationship between acid-formers and methane-formers is under stress.
4. Methanogenesis: This is the final and most sensitive stage. Methanogenic archaea convert acetic acid, hydrogen, and carbon dioxide into methane (CH4) and carbon dioxide (CO2). Their growth rates are much slower than those of acidogenic organisms, which is why recovery from inhibition can take weeks rather than days. Methanogens are particularly sensitive to pH change, ammonia, sulphide, temperature shock, trace element deficiency, and toxic contaminants. In a stable plant, methanogenesis continuously removes the intermediates produced upstream. In an unstable plant, this final conversion becomes the bottleneck and the entire process begins to back up chemically.

In full-scale operation, these stages overlap rather than occurring in separate physical compartments, but the residence time of the digester must still be sufficient for the slowest microbial population. Typical hydraulic retention time (HRT) in a mesophilic agricultural plant is often in the range of 40 to 80 days, while food waste plants with stronger feedstocks and more intensive pre-treatment may operate closer to 30 to 60 days, depending on design and permit conditions. Thermophilic systems can sometimes reduce HRT into the 20 to 40 day range, but this is only achievable where feed uniformity, heating control, and biology are tightly managed. As a rule, hydrolysis and acidogenesis occur relatively quickly, often within the first few days, while acetogenesis and methanogenesis require more sustained retention to achieve stable volatile solids destruction and gas yield.

Essential Operating Conditions

Maintaining a stable environment for these microorganisms is the primary objective of AD site management. We monitor several key parameters to ensure biological health:

• Temperature: Most UK plants operate in the mesophilic range (35°C to 40°C), which offers a balance between reaction speed and biological stability. Thermophilic systems (50°C to 60°C) operate faster but are more sensitive to fluctuations. Sudden changes of more than approximately 1°C per day can stress methanogenic populations, particularly in already marginal systems. Temperature uniformity is also important. Poor mixing can create cold zones and localised underperformance even when the bulk tank reading appears acceptable.
• pH and Alkalinity: Methanogens are highly sensitive to acidity. We aim for a pH between 6.8 and 7.2. Adequate alkalinity acts as a buffer, preventing the pH from dropping if VFA levels rise unexpectedly. In practice, pH on its own is not enough. A plant can show an apparently acceptable pH while buffering is being consumed. For this reason, alkalinity, VFA concentration, and VFA-to-alkalinity ratio should be reviewed together rather than in isolation.
• Organic Loading Rate (OLR): This represents the amount of organic matter fed into the digester per day, usually expressed as kg volatile solids or kg COD per m³ of digester volume per day. Overloading can lead to an accumulation of acids, which inhibits the methanogens and can lead to a "sour" digester. A useful operational principle is that OLR changes should be incremental and linked to observed gas production, residual VFA profile, and digestate consistency rather than only to feedstock availability.
• Mixing: Although often overlooked, mixing affects mass transfer, temperature distribution, scum control, and access of microorganisms to substrate. Under-mixing can allow stratification, crust formation, and dead zones. Over-mixing can disrupt microbial flocs and increase foaming risk, particularly in viscous or protein-rich systems.
• Retention and Throughput Balance: HRT and solids retention must remain aligned with the degradability of the feedstock. If throughput is increased without corresponding process capacity, the plant may maintain volume while losing effective digestion time. This commonly presents as reduced gas yield, elevated residual methane in digestate, and rising intermediate acids.

Managing Ammonia Inhibition

Ammonia (NH3) is a natural byproduct of the degradation of nitrogenous materials, such as proteins and urea. While nitrogen is a necessary nutrient for microbial growth, excessive concentrations can lead to ammonia inhibition, one of the most common causes of process instability in high-nitrogen systems.

The Mechanism of Inhibition

In an AD system, ammonia exists in two forms: the ammonium ion (NH4+) and free ammonia (NH3). These two species are in equilibrium:

NH4+ ⇌ NH3 + H+

This equilibrium is central to understanding inhibition risk. Total Ammoniacal Nitrogen (TAN) is the combined concentration of ammonium and free ammonia, usually reported in mg/L. However, it is the free ammonia nitrogen (FAN) fraction that is particularly toxic to microorganisms, because un-ionised NH3 can diffuse through cell membranes and disrupt intracellular pH regulation, potassium balance, and enzyme activity.

The balance between ammonium and free ammonia is heavily influenced by temperature and pH. As the temperature or the pH increases, a greater proportion of TAN shifts into the toxic free ammonia form. This is why thermophilic plants or those operating at a high pH are at a greater risk of inhibition even when total TAN appears unchanged. In practical terms, a plant at pH 7.8 and 52°C can experience materially higher free ammonia stress than a plant at pH 7.2 and 38°C with the same TAN concentration.

As a broad operational guide, many mesophilic plants begin to experience stress when TAN reaches approximately 2,500 to 3,000 mg/L, and clear inhibition risk is often seen above 3,000 to 4,000 mg/L, depending on acclimatisation, trace element status, retention time, and feedstock composition. For free ammonia, early inhibition is commonly reported from around 80 to 150 mg/L NH3-N, with more significant inhibition often occurring above 150 to 250 mg/L NH3-N. Severe inhibition can develop above this range, especially in thermophilic systems. These values are not absolute limits, because microbial communities can adapt over time, but they are useful trigger points for increased monitoring and caution.

Identifying the Symptoms

We recommend close monitoring of the following indicators to identify early signs of ammonia inhibition:

• Reduction in Methane Content: A gradual decline in the percentage of methane in the biogas, often accompanied by reduced specific gas yield per tonne of feed or per kg volatile solids added.
• Accumulation of Volatile Fatty Acids (VFAs): As methanogens become inhibited, they cannot process the acids produced in the earlier stages, leading to a rise in VFA levels. Propionic acid accumulation is particularly useful as an early warning sign in ammonia-stressed systems.
• Stable but High pH: Unlike acid-driven inhibition, ammonia inhibition can occur while the pH remains relatively high due to the buffering capacity of ammonium bicarbonate, which can mask the underlying biological stress.
• Poor Feed Conversion: Operators may observe thicker digestate, more residual fibrous material, increased foaming tendency, or lower gas response to feed additions.
• Slower Recovery After Upsets: A plant under chronic ammonia pressure often recovers slowly after routine disruptions such as feed interruptions, temperature dips, or changes in substrate mix.

Mitigation Strategies

To prevent or manage ammonia inhibition, we implement several operational strategies:

1. C/N Ratio Management: We aim for a Carbon-to-Nitrogen (C/N) ratio of between 20:1 and 30:1. If your feedstock is high in nitrogen, for example poultry manure, whole-crop silage, straw-based material, or other carbon-rich substrates may be used to rebalance the mix. The objective is not only dilution of nitrogen, but also provision of a slower and more even carbon release profile.
2. Co-digestion: Mixing different feedstocks can dilute high nitrogen levels and provide a more balanced nutrient profile for the bacteria. This is particularly valuable where one substrate delivers buffer and trace elements while another contributes gas yield.
3. Feedstock Gradualism: Any change to the feedstock mix must be introduced slowly. This allows the microbial population to adapt to higher ammonia concentrations over time. Step changes in high-protein feedstocks are a common cause of inhibition, particularly after delivery interruptions when operators attempt to "catch up" by feeding harder.
4. Operational Adjustments: In some cases, reducing the operating temperature slightly or increasing the hydraulic retention time can provide the stability needed to overcome inhibitory levels. Lowering pH intentionally is usually not a preferred first-line control measure in full-scale operation, but avoiding unnecessary pH rise is important.
5. Load Reduction and Pause Strategy: Where ammonia stress is already evident, a temporary reduction in OLR is often more effective than attempting to maintain throughput. This gives methanogens time to consume accumulated intermediates. A controlled feed pause, followed by staged reintroduction, can be useful where VFA accumulation is moderate and tank biology remains active.
6. Mix Review and Layer Control: High-ammonia systems can also suffer from localised dead zones or crusting, particularly where fibrous co-substrates are used for C/N correction. It is therefore worth checking whether the issue is purely chemical or partly mechanical. Uneven mixing can create local inhibition pockets that are not obvious from one sampling point.
7. Consider Long-term Feed Strategy Rather Than Short-term Correction: If your baseline substrate portfolio is intrinsically high in nitrogen, repeated rescue actions will not provide a durable solution. In these cases, the feeding plan, storage regime, and plant design assumptions should be reviewed together.

Practical Monitoring Recommendations

Practical monitoring should focus on trend interpretation rather than isolated laboratory numbers. We recommend the following minimum approach:

• Daily: Record feed volumes, feed type changes, digester temperature, gas production, methane percentage, and any visible change in foaming, crusting, or digestate texture.
• Two to three times per week: Check pH, alkalinity, and where available a rapid VFA screen, especially after feedstock changes or throughput increases.
• Weekly: Review TAN and calculate or estimate free ammonia in the context of actual pH and temperature. A TAN number without pH and temperature has limited decision value.
• Trend review: Plot methane %, gas yield, TAN, VFA, and OLR on the same timeline. Ammonia inhibition is often clearer as a pattern than as a single threshold exceedance.
• Sampling discipline: Take samples consistently from the same point, after adequate mixing, and at comparable times relative to feeding. Inconsistent sampling can create false confidence or false alarms.

From an operational troubleshooting perspective, if TAN is rising, methane is slipping, propionate is increasing, and pH remains neutral to slightly high, ammonia should move high up the list of probable causes. In that situation, the practical priority is usually to stabilise biology first and only then rebuild loading.

The Strategic Choice: Agri vs Waste

A fundamental decision for any AD project is the choice of feedstock. In the UK, this usually falls into two categories: Agricultural (Agri) and Waste. Both pathways have unique operational requirements and regulatory frameworks.

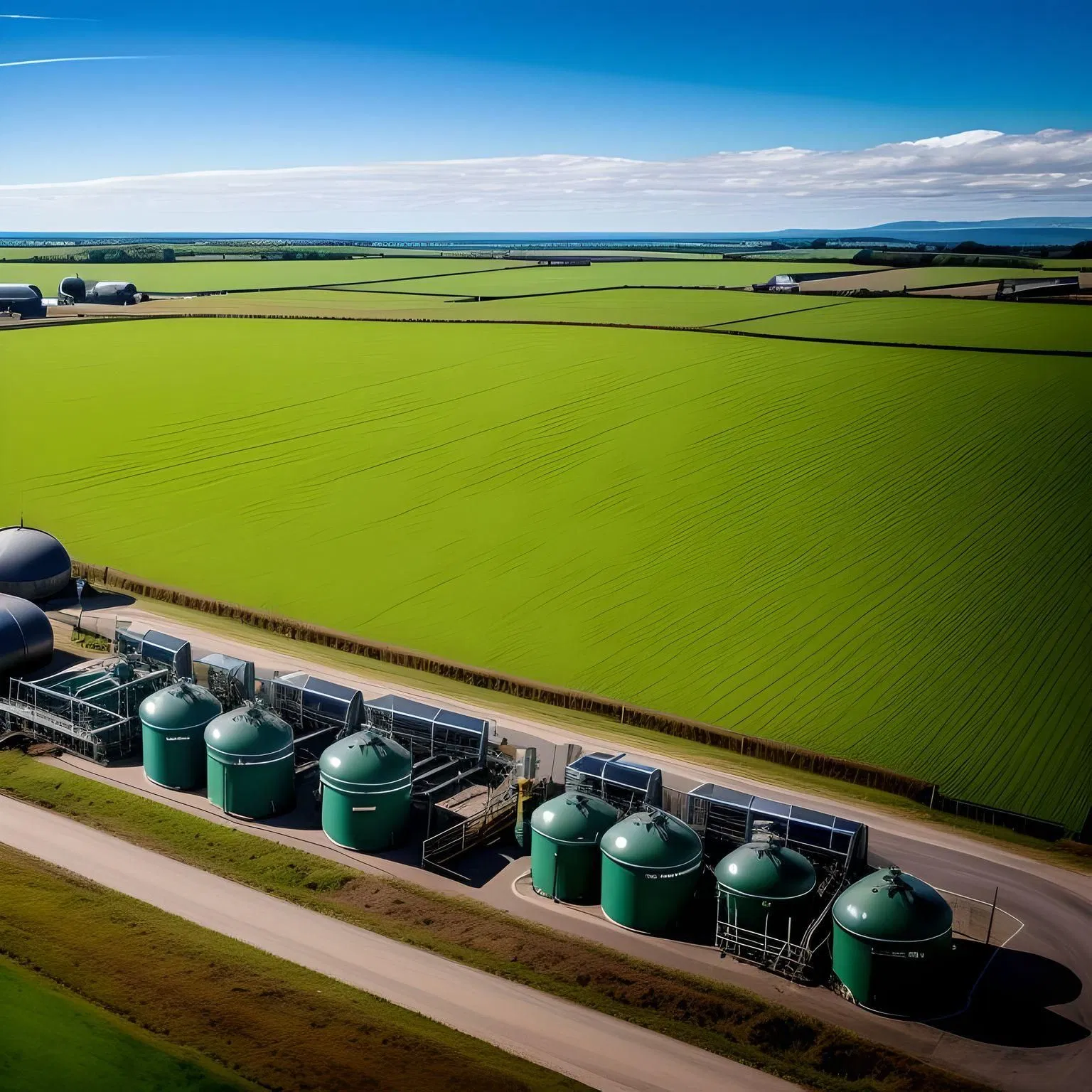

Agricultural AD (Agri)

Agricultural plants typically process livestock manures, slurries, and purpose-grown energy crops like maize or rye.

• Reliability: Supply is often more predictable as it is usually linked to the farm’s own operations or local agricultural partnerships.
• Biological Stability: Manures provide excellent buffering capacity and essential trace elements, making these systems generally more robust. However, this stability can be overstated if a plant depends heavily on protein-rich manures or silages with variable dry matter, because both TAN pressure and seasonal feed variability still need active management.
• Logistics: Large volumes of material must be moved, often requiring significant storage capacity and careful planning for the spreading of digestate back onto land.
• Operational Profile: Agri plants often work with lower-energy, higher-volume substrates. This generally means larger throughput per unit of gas produced, longer retention times, and more emphasis on pumping, mixing, and digestate handling efficiency.
• Common Challenges: Sedimentation, fibrous crusting, seasonal dry matter swings, and underestimation of digestate storage or landbank requirements are frequent operational issues.

Waste-based AD

Waste-based plants treat source-segregated food waste, commercial food processing residues, and sometimes sewage sludge.

• Financial Model: These plants often generate revenue through "tipping fees" (gate fees) paid by waste producers, in addition to energy sales.
• High Energy Density: Waste materials, particularly fats and sugars, have a very high biogas potential compared to slurries. This can improve yield significantly, but it also increases the risk of overloading, foaming, rapid acidification, and instability if feed preparation or metering is poor.
• Complexity: Waste feedstocks are highly variable and often contain contaminants such as plastics or metals. This necessitates robust pre-treatment and de-packaging infrastructure.
• Regulatory Compliance: Operating a waste-based site involves stricter regulatory requirements, including Animal By-Product (ABP) regulations and environmental permitting.
• Operational Profile: Waste plants generally require tighter feed acceptance procedures, more laboratory control, more active process management, and stronger contamination management than agri sites.
• Common Challenges: Packaging contamination, inconsistent substrate quality, grease-related foaming, high sulphur loads, and digestate quality risk are recurring issues.

Comparison Overview

Feature	Agricultural AD	Waste-based AD
Primary Feedstocks	Manure, slurry, energy crops, crop residues	Food waste, industrial residues, FOG, catering waste, sewage-derived materials
Typical Dry Matter Profile	Often lower for slurry systems; moderate for silage-based systems	Highly variable; can range from pumpable slurries to dense de-packaged organics
Gas Yield per Tonne	Usually lower but more predictable	Often higher, but less consistent without strong feed control
Main Revenue	Energy sales, digestate fertiliser value, farm integration benefits	Tipping fees, energy sales, waste treatment contracts
Biological Buffering	Often stronger where manure is a core feedstock	Can be weaker or more variable, depending on substrate mix
Ammonia Risk	Moderate to high where poultry manure, pig slurry, or protein-rich material is used	Moderate where food waste is mixed; can rise sharply with protein-rich residues
Contamination Risk	Low to moderate, mainly grit, stones, or fibrous oversize	High, including plastics, packaging, metals, glass, and inert material
Pre-treatment Requirement	Usually limited to maceration, screening, or blending	Often extensive, including de-packaging, pasteurisation, contaminant removal, and hygienisation
Process Control Requirement	Generally stable but still dependent on disciplined feeding and mixing	High variability; requires active and often more frequent intervention
Digestate Management	Often integrated with farm land application plans	More constrained by contamination risk, quality specification, and permitting obligations
Regulatory Burden	Standard agricultural and environmental controls	Higher, including ABP, waste permitting, feedstock acceptance, and record-keeping obligations
Common Failure Modes	Settling, crusting, under-mixing, low gas from poor solids destruction	Foaming, overload, contamination damage, rapid VFA accumulation, off-spec digestate

From an operational standpoint, the choice is not simply a question of which route produces more gas. It is a question of how much feedstock variability, regulatory complexity, contamination risk, and biological sensitivity your plant design and management structure can absorb. An agri site may offer greater biological resilience, but it can underperform if feedstock analysis, mixing, and retention are neglected. A waste site may offer stronger commercial returns, but those returns are usually dependent on disciplined front-end control, reliable pre-treatment, and frequent process review.

Practical Operational Tips and Troubleshooting

A useful rule across both plant types is that most serious digester failures begin as small trend deviations that are either missed or normalised. We recommend the following practical habits:

• Do not increase feed purely because the tank "looks quiet": Gas production lag, delayed VFA response, and temporary mixing changes can create false impressions. Loading decisions should be based on trend data rather than visual judgement.
• Treat substrate change as a process change: A new supplier, new season, or new silage clamp should be approached as a new feedstock until proven otherwise. Dry matter, TAN contribution, contaminant risk, and degradability can all shift materially.
• Investigate foaming as a root-cause symptom: Foam is often linked to overload, protein-rich material, grease, filamentous growth, mixing imbalance, or rapid chemistry change. Antifoam may suppress the visible symptom, but it does not resolve the underlying cause.
• Watch propionate, not only total VFA: A stable total VFA number can conceal a changing acid profile. Rising propionate relative to acetate often indicates reduced conversion efficiency and stress in the methanogenic phase.
• Check the plant mechanically when biology appears unstable: Chopper pump wear, blocked nozzles, mixer failure, grit build-up, and heat exchanger fouling can all present as process underperformance.
• Respond early, not dramatically: A small reduction in OLR made early is usually less damaging than a full process crash followed by a long recovery period.

If you are operating an agri plant, prioritise solids management, retention time protection, and realistic digestate planning. If you are operating a waste plant, prioritise feed acceptance discipline, contamination control, pre-treatment reliability, and frequent laboratory verification. In both cases, stable performance depends on consistent routine rather than occasional intervention.

Conclusion

Understanding the basics of Anaerobic Digestion, the risks associated with ammonia, and the strategic implications of your feedstock choice is the foundation of a successful renewable energy operation. At TIFT Services, we provide the technical expertise and operational support required to navigate these complexities.

Whether you are looking to improve the efficiency of an existing site or are in the early stages of a new development, our mission-driven approach focuses on long-term sustainability and regulatory excellence.
